- Durable High-Speed Steel: Made of high-quality, high-speed steel, ensuring durability and longevity for your tapping needs.
- Torsion-Type Tapping Chuck: Features a torsion-type tapping chuck that prevents taps from breaking, enhancing tool life and performance.
- Quick-Change Device: Allows for easy and rapid installation and disassembly of tapping chucks, saving you time and effort.
- Safe & Fast Replacement: Enables safe and speedy tapping chuck replacement, improving efficiency and workflow.
- Strong Clamping Force: Offers excellent clamping strength, ensuring high accuracy and a long service life for your tapping operations.

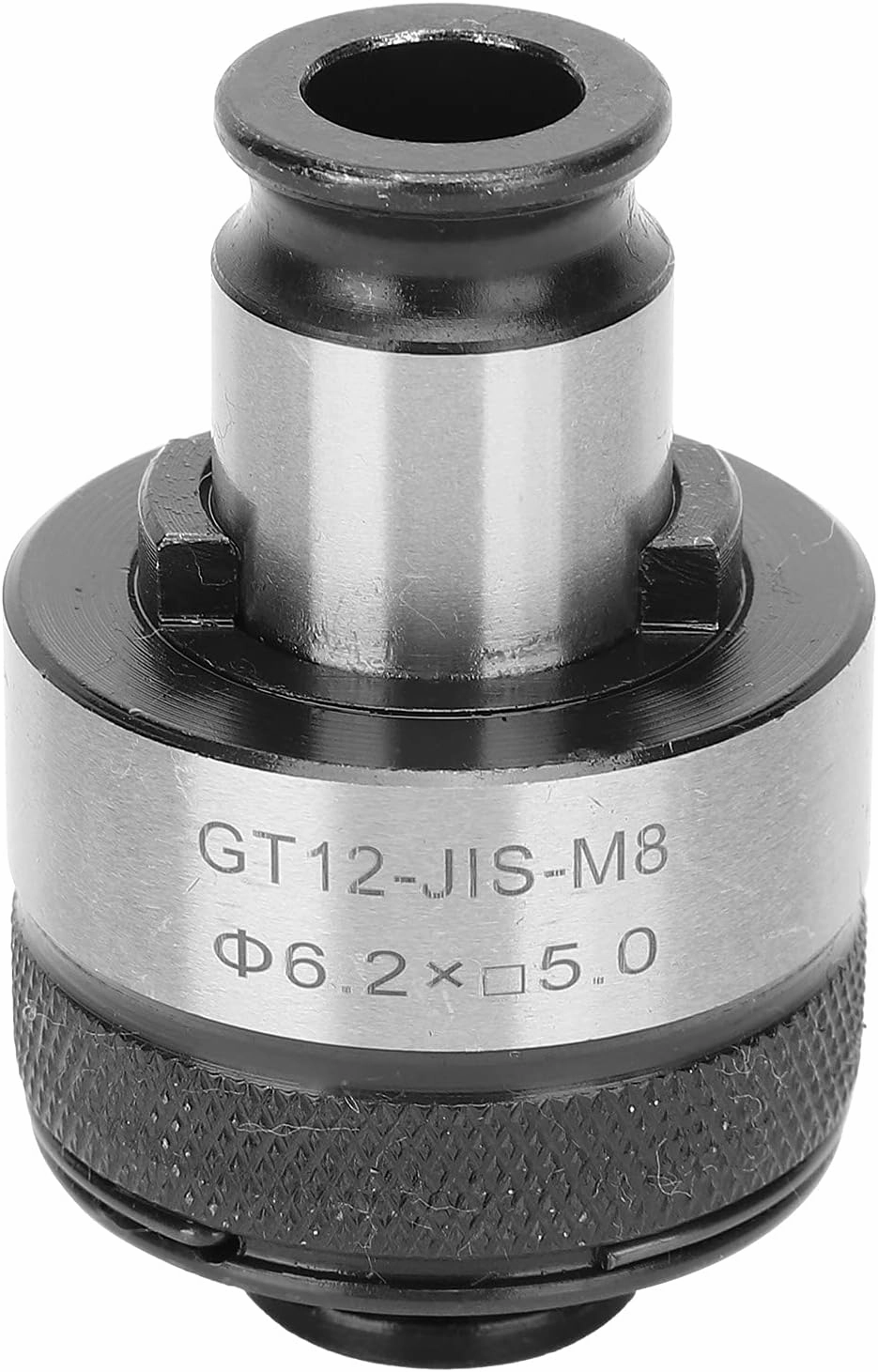

Item Type: Tapping Collet
Material: High speed steel
Specification: M8
Shank Diameter x Square Hole: Approx. 15 x 12mm / 0.6 x 0.5in
Product Category: CNC Tool
System: Japanese standard
How to Use:
1. Press the knurled position of the handle body with the thumb of your left hand and pull it in the direction of the arrow
2. The handle body is aligned with the concave and convex keys of the chuck, install the chuck into the shank body
3. When disassembling the chuck, pinch the knurled key with your hand and pull the chuck back and it will be ejected automatically
Install Steps:
1. Thumbs press down the spring
2. Put the tap into the chuck hole and release your thumb
Package List：
1 x Tapping Collet
